| Basic | |
|---|---|
| Battery Chemistry | Lead Acid |
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Form Factor | Tower |
| Waveform Type | Sine Wave |
| Brand Name | APC by Schneider Electric |
| Network (RJ-45) | Yes |
| Product Family | Smart-UPS On-Line |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Load Capacity (VA) | 8 kVA |
| Product Color | Black |
| Load Capacity (W) | 8 kW |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 16 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Typical Battery Recharge Time | 1.50 Hour |
| Controls/Indicators | |
| Status Indicators | LED Indicators |
| Environmental Conditions | |
| Thermal Dissipation | 1497 BTU/h |
| Maximum Operating Temperature | 40°C |
| Sound Emission (A-Weighted) | 55 dB(A) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | SRT8KXLI |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |

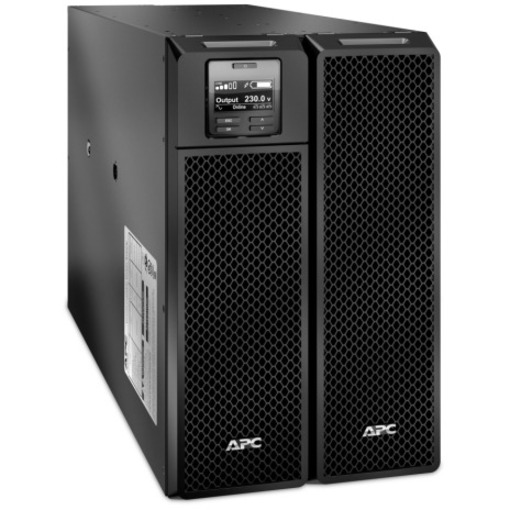

| Product Name | Smart-UPS SRT 8000VA 230V |
| Product Line | Smart-UPS On-Line |
| Brand Name | APC by Schneider Electric |
| Marketing Information |
A versatile UPS developed for the harshest power conditions in the world. Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Total Number of Expansion Slots | 1 |
| Management | |
| Alarm | Battery Failure |
| Physical Characteristics | |
| Weight (Approximate) | 111.82 kg |
| Form Factor | Tower |
| Height | 432 mm |
| Width | 263 mm |
| Depth | 715 mm |
| Product Color | Black |
| Power Description | |
| Circuit Breaker | Yes |
| Output Voltage | 230 V AC |
| Waveform Type | Sine Wave |
| Technical Information | |
| Bypass Switch | Internal |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
| Protection Type | Surge |
| Protection Type | Lightning |
| Protection Type | Spike |
APC by Schneider Electric Smart-UPS On-Line – 8kVA/8kW Torre – 1.50Horar Recharge – 5Minuto Stand-by – 230 V AC Output
