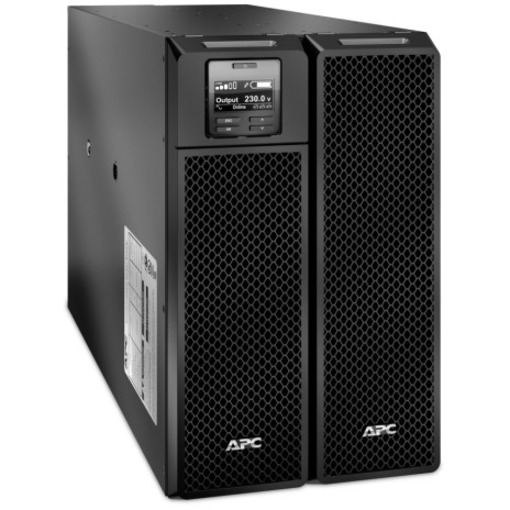

APC by Schneider Electric Smart-UPS On-Line – 10kVA/10kW Torre – 1.50Horar Recharge – 3Minuto Stand-by – 230 V AC Output

Availability:

1 in stock


Compare
Basic
Battery Chemistry Lead Acid
Product Type Double Conversion Online UPS
Hot Swappable Yes
Form Factor Tower
Waveform Type Sine Wave
Brand Name APC by Schneider Electric
Network (RJ-45) Yes
Product Family Smart-UPS On-Line
Backup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 3 Minute
Load Capacity (VA) 10 kVA
Product Color Black
Load Capacity (W) 10 kW
Battery Information
Battery Chemistry Lead Acid
Hot Swappable Yes
Number of Batteries 2
Backup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 3 Minute
Battery Characteristics Maintenance-free, Sealed, Spill-proof
Typical Battery Recharge Time 1.50 Hour
Controls/Indicators
Status Indicators LED Indicators
Environmental Conditions
Sound Emission 55 dB
Thermal Dissipation 2002 BTU/h
Maximum Operating Temperature 40°C
General Information
Product Type Double Conversion Online UPS
Manufacturer Part Number SRT10KXLI
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Smart-UPS SRT 10000VA 230V
Product Line Smart-UPS On-Line
Brand Name APC by Schneider Electric
Marketing Information

A versatile UPS developed for the harshest power conditions in the world.

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Interfaces/Ports
USB Yes
Network (RJ-45) Yes
Total Number of Expansion Slots 1
Management
Alarm Battery Failure
Physical Characteristics
Weight (Approximate) 111.82 kg
Form Factor Tower
Height 432 mm
Width 263 mm
Depth 715 mm
Product Color Black
Power Description
Circuit Breaker Yes
Output Voltage 230 V AC
Waveform Type Sine Wave
Technical Information
Bypass Switch Automatic & Manual
Bypass Switch Internal
Emergency Power OFF Yes
Protection Type Spike
Protection Type Surge
Protection Type Lightning
