APC by Schneider Electric NetShelter 42U Gabinete de rack para Armazenamento, Servidor – 482.60mm Rack Width – Preto 1022kg Dynamic/Rolling Weight Capacity – 1363kg Static/Stationary Weight Capacity

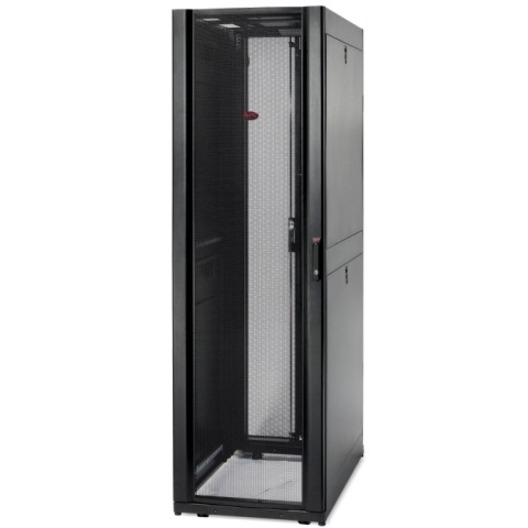

APC Netshelter SX, Server Rack Enclosure, 42U, Black, 1991H x 600W x 1070D mm

Standard enclosure for low to medium density server and networking applications. Compact width to optimize data center space. 42U height to easily roll through doorways.

Includes: Baying hardware, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting hardware, Pre-installed casters, Side panels

NetShelter SX Enclosures Features & Benefits | Convenience Cable access openings with pre-installed brushes

Large cable access slots in the roof provides access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor. Roof includes openings with brush strips pre-installed in locations biased towards the front of the enclosure to allow for data cable passthrough and provisions for air containment.

Eyebolt support integrated into enclosure frame

Integrated eyebolt holes at the top of the enclosure frame allow the enclosure to be lifted for movement and enclosure placement using eyebolt lifting mechanisms. Refer to enclosure user documentation for detailed specifications on eyebolt requirements and enclosure weight limits.

Equipment mounting rails integrate with patch cabling systems

Equipment mounting rails include zero U mounting holes beside the EIA 19″ mounting space that allow the installation of Data Distribution Cable (DDC) patch systems without taking up any critical equipment U-space. AV and Networking enclosure designs do not include hole locations for integration of DDC cabling. Other 1U, 2U, and rear enclosure zero U options are available for use with these enclosures.

Enclosure adjustment tools and hardware provided

All enclosures are provided standard with hardware bag that includes hardware for mounting IT equipment and tools for simple enclosure adjustment.

Easily removable cable access roof

Roof can be removed with simple pull-pin hinges for access during equipment installation or even with cabling already in place and routed through the cable openings. Once removed the roof is reversible to reposition the larger cable openings for power distribution plugs and connectors.

Simple Selection

No need to spend hours choosing from and compiling dozens of part numbers to create a single enclosure. Schneider Electric has made it easy by handling the details and providing complete enclosures with single part numbers.

Quick release doors

Front door can be moved to the opposite side or interchanged with rear doors. Doors are easily removed with simple lift-off design.

• Adjustable Front Vertical Mounting Rail
• Adjustable mounting depth
• Cable Access
• Deep form factor (42″/1070mm)
• Door ventilation exceeds 830 in2 (5355 cm2)
• Expanded Cable Management
• Facilitates overhead cable management
• Facilitates overhead power distribution
• Facilitates rear/vertical cable management
• Mounts two APC metered PDUs in one rear channel
• Multi-vendor equipment compatibility
• Numbered U positions
• Optimized depth
• Protective grounding provisions
• Provides Mounting Option for PDUs
• Provides security between enclosures when bayed together
• Quick release doors
• Quick release side panels
• Removable doors and side panels
• Reversible doors
• Rolls through a 2 meter doorway
• Ships fully assembled
• Split rear doors
• Supports 24 inch floor tile spacing
• Supports 600 mm floor tile spacing
• Tool-less mounting
• UBC Zon

• NetShelter SX 42U Deep Rack Enclosure With Sides
• Casters
• Doors
• Ground Studs
• Installation Guide
• Leveling feet
• Mounting Hardware
• Roof
• Side Panels
